Controller

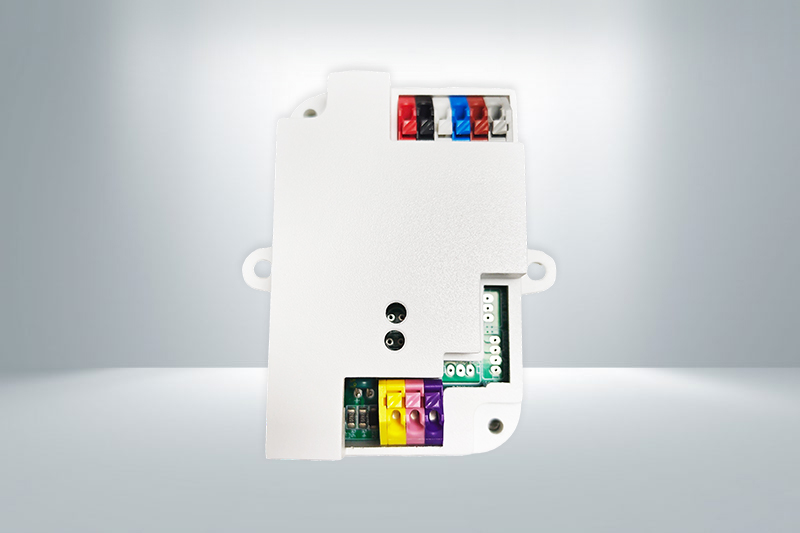

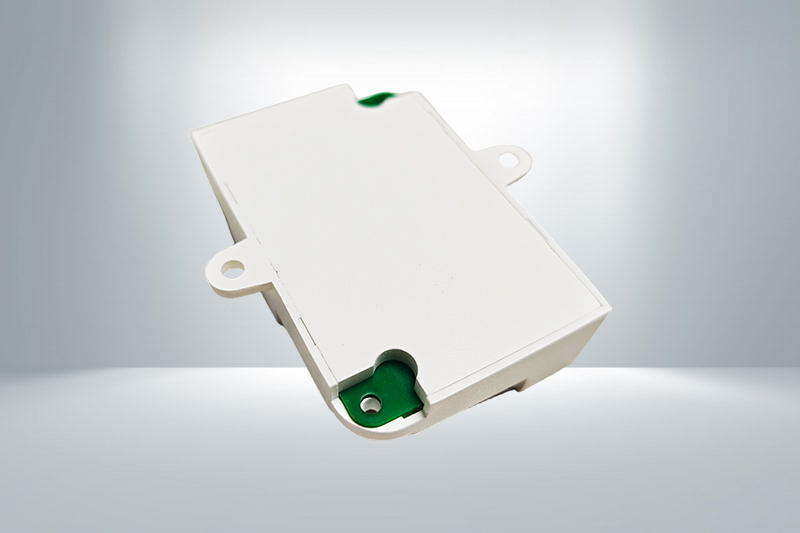

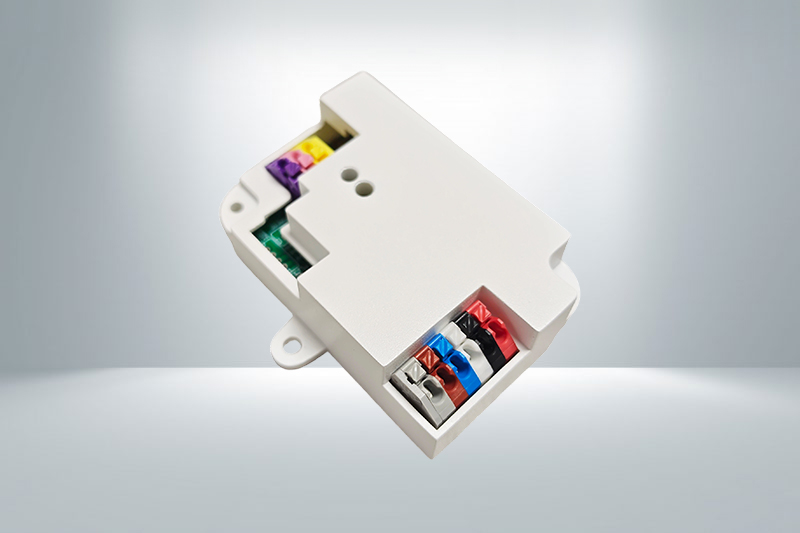

DC Controller (Microwave)
Product Feature:
Both the sensor and the controller support 12VDC input, which can be perfectly used together to form a complete intelligent control system. They are widely applied in the intelligent lighting control scenarios of large spaces such as most warehouses, taking into account convenience, stability and energy saving, and providing users with an efficient and accurate intelligent control solution.
Smart Lighting Control App Introduction
This is a dedicated app for controlling smart lighting fixtures.You can control a single smart light directly via Wi-Fi, or group multiple lights to achieve unified and centralized control.Welcome to download and experience it!
Sensor Specification 01
Product Feature:
① Serial port signal output.
② 4-pin 3.0mm pin connector, Junction box free design, IP65 waterproof.
③ 12 meters maximum installation height, suitable for most warehouses.
④ 12VDC input, suitable for DC systems or LED power upplies with a 12VDC auxiliary power output.
Sensor Parameters
Working Frequency 5.8GHz ±75MHz, ISM band
Transmitting Power 3mW Max.
Detection Area 0-5 gears, 0 = off, 5 = highest (microwave_threshold)
Daylight Sensor Report the daylight value based on the differ value.
Detection Range (radius) Ceiling installation at 10m high: r≥4m@0.3m/s, r≥3m@1m/s
Horizontal installation at 2m high: r≥13m@0.3m/s, r≥7m@1m/s
5.8GHz ±75MHz, ISM band
Installation Height 10m (12m Max.) Meet standard height and high-bay height requirements.
Controller Specification02
Product Feature:
① 12VDC input, suitable for DC systems or LED power supplies with a 12VDC auxiliary power output.
② Signal Output: Serial signal output or 0–10V dimming signal output.
③ Voltage Range: Supports wide voltage input from 100- 300V.
④ Smart Control: Supports Bluetooth APP parameter configuration and contro.
④ Rich Functionality: Enables dimming, color tuning, angle adjustment, energy monitoring, and light control with fully adjustable parameters.
④ Environmental Adaptability: Can be installed inside luminaries for outdoor use.
④ Precise Monitoring: Metric IC detects output voltage and current across LED terminals; True power meter (current and voltage) ， metric chip calculates power.
Parameters
Connection Protocol with Driver 0-10V
Daylight Priority Light control option
Energy consumption monitoring load Load is LED lighting fixtures; any load changes will affect monitored power
Diming App infinite dimming
Adjust the angle Adjustment of APP angle
CCT setting Set the CCT of the APP
Power setting Set the power of the APP
LED Driver03
Product Characteristic:
① International universal AC input range.
② With power factor correction function.
③ Protection category: SCP/OTP/OVP/OLP/OCP.
④ isolated constant current led driver，Dimming function.
④ IP 66degree of protection,Both indoor installation.
④ 5 years warranty.
Input characteristics:
Item Unit Min Rated Max Remark
Input Voltage Vac 100 120-240V 277 The margin range of input voltage.
Input Frequency Hz 50-60
Power Factor PF 0.9 / / 100-277VAC 50HZ/60HZ, Full load
Total Harmonic Distortion / / / 20% 100-277VAC 50HZ/60HZ, Full load
Input Current A / / 1.2 100-277VAC 50HZ/60HZ, Full load
Inrush Current A / / 45 277Vac, Full load cold start
No-load power consumption ≤ W / / 3 100-277VAC 50HZ/60HZ, NO load
Dimming function:
Dimming Mode Dimming range
RDM 0%-100%
Bluetooth 0%-100%
